Recently SYD Precision wired a single axis controller to one of our CNC vertical machines, and successfully made it fully automated by CNC program. CNC machines maintenance and electrical wiring are very expensive in Bay Area, California, so hopefully this article can shed some lights for those who want to DIY.

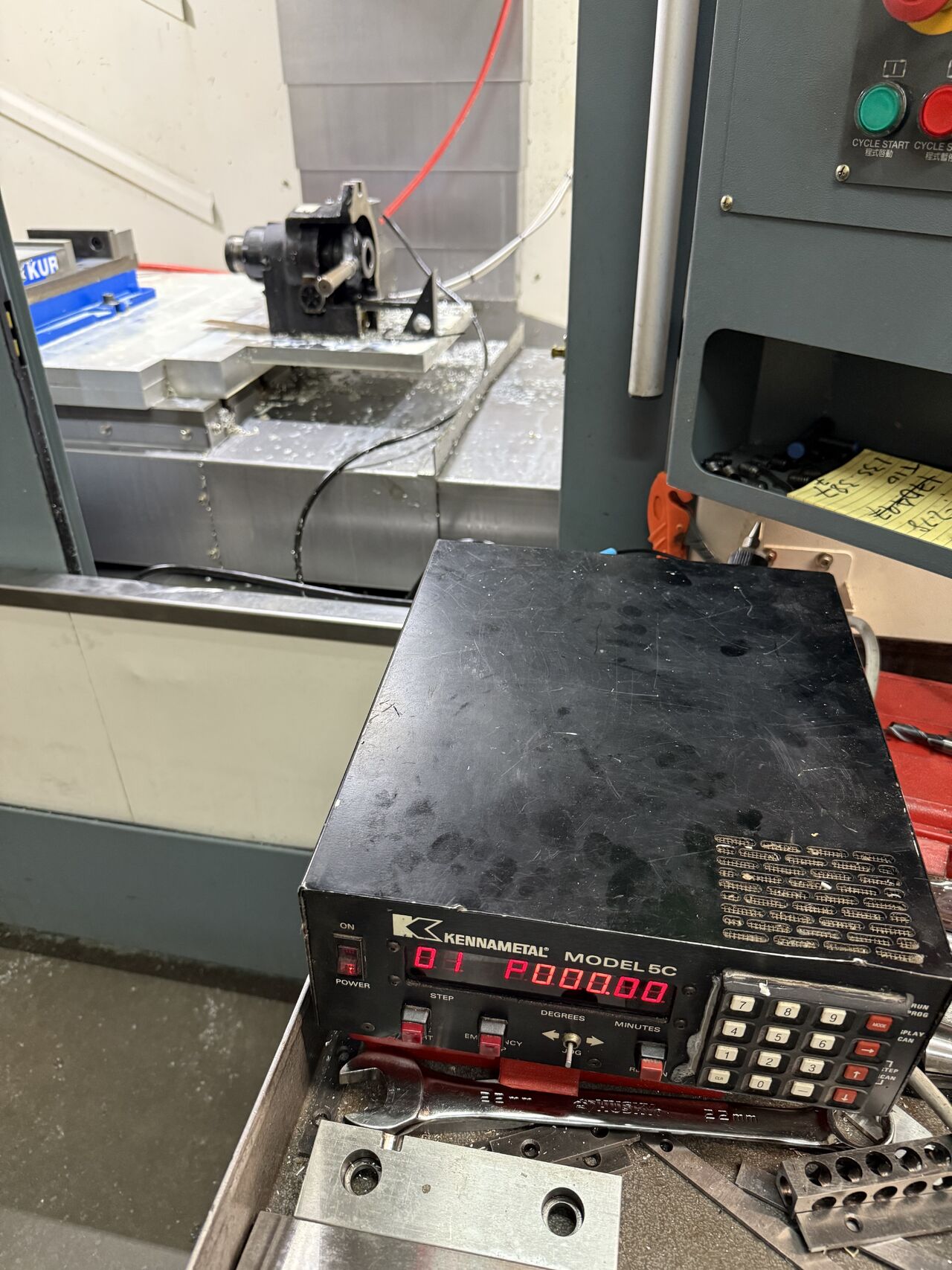

Wiring steps : 1. Make sure the 5C indexer and standalone controller are functional before hooked to the CNC machine.
2. Find one pair of CNC machine’s spare M codes. Our FANUC 0i-mf machine spare M code are M21 and M22. Consult with your machine builder or check CNC machine’s operation manual to find one pair.

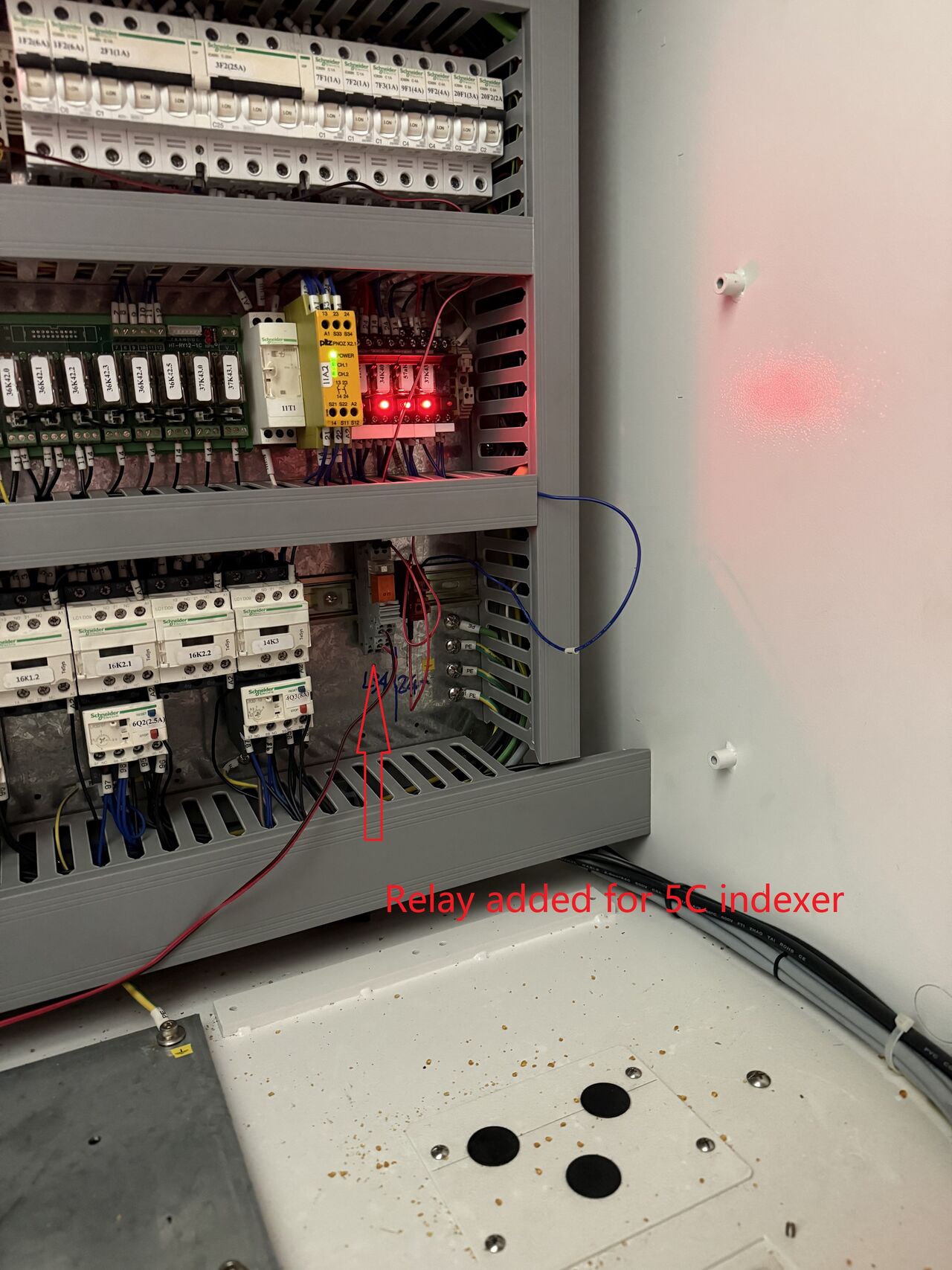

3, Install a Wago 788-304 Relay in your CNC machine’s electrical cabinet.
4. Connect M21 port (+) and 24V (-) to newly installed dedicated Wago relay’s input terminals, be careful not cross connected, otherwise there will be a electrical short when M21 is called.
5. Connect two wires to Wago relay’s two output terminals that will be shorted by M21 command, and make a socket with these two wires

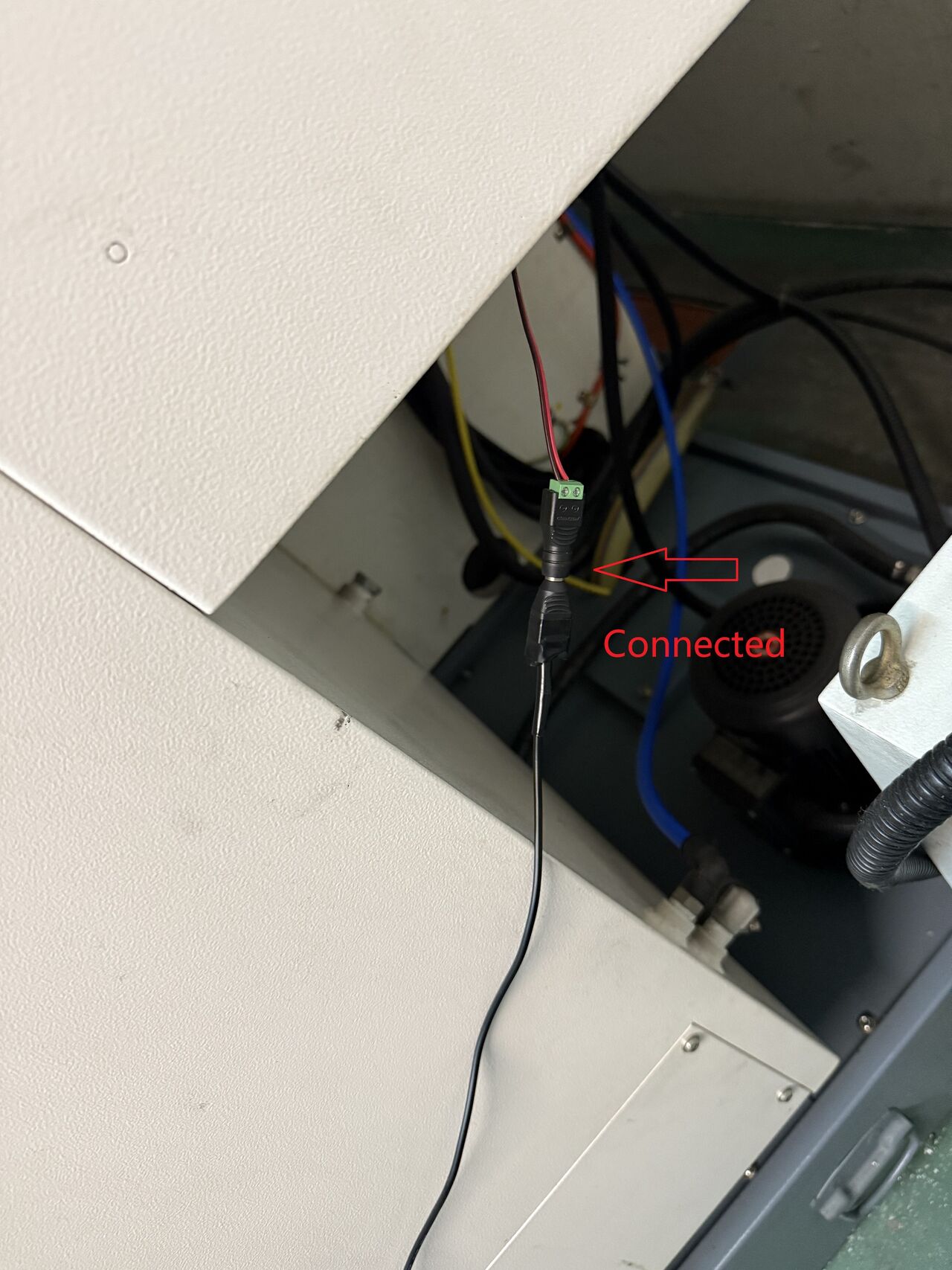

6. Extend two wires (white and black) from single axis controller’s remote cable, and connect them to a plug.
7. Plug into the socket.
8. Create a normal CNC program and insert the following M codes:
M22 (reset)
M21 (short two wires in plug and socket)
G4 X0.2 (power on for 0.2 seconds)
M22 (power off and reset)
9. Testing CNC program on CNC machine, the single axis controller should get the signal and drive the 5C collet rotating when M22 is executed in CNC controller.
SYD Precision currently has four of four-axis CNC machines now. This eliminates the need to change chucks frequently when multiple 5C collet jobs need to be done at same time, significantly improved our work efficiency.
We bought a Tsugami VA2 CNC machine and the machine was delivered on site on August 6th.
For a long time, SYD Precision is dreaming to have a high spindle speed CNC machine and this machine comes to save.
With its 30,000 RPM, it’s day and night difference when using small endmill to machine small parts. For example, our 850 type CNC machine only has maximum 12000rpm. If we use a two flutes Ø1.0mm carbide endmill, give it a 0.007mm chip load, the maximum feedrate is only f=12000*2*0.007=168mm/min. For this Tsugami machine, the maximum feedrate can be f=420mm/min, which is almost three times faster.
After the machine was installed, we have machined many small gears with a Ø.03″ carbide endmill successfully. Before, these small gears have to be done by our in-house wire edm. The lead time was shortened from two weeks to only 5 days.
On August 27, SYD Precision purchased two used CNC machines from another CNC machine in Fremont CA. One is a CNC lathe machine manufactured in South Korea, another one is a CNC machining center manufactured in Taiwan.
These two CNC machines are in good working condition and can hold tolerance of 0.001″ to 0.0015″. The CNC lathe machine has Fanuc controller and the Akira Seiki has a Mitsubishi controller.
The previous owner needed to buy new machines to get tax deductions for the year 2023, so he sold these two machines to SYD Precision.
With the addition of these two machines, SYD Precision currently has 7 CNC machines now, and its production capacity has been further improved.
